Aprilia Tuono V4 APRC – Track Day Bike Prep

After a full season owning a 2011 Suzuki GSXR750 track day bike, I decided to take a different route and grabbed a 2013 Aprilia Tuono V4 APRC.

Check out the article I wrote about some things I discovered about the Tuono.

The bike was setup as a street bike, but with a lot of little goodies already installed by the previous owner. Many are items I don’t typically spend money on, like an aftermarket exhaust and sexy cosmetic changes. But, they are cool!

Below, I describe the modifications I did to make the bike more track worthy and also list the stuff the previous owner installed.

The first thing I do with any bike I plan on taking to the track is to bolt on engine and frame protection. Twisted Throttle is a sponsor of this website and sell R&G and SW-Motech accessories that work really well and are reasonably priced. Click here or on the Twisted Throttle logos on this page to buy accessories and help support the site.

Frame Sliders

There is a debate about whether frame sliders are a good thing or is they actually cause more damage. Sliders are great for minor drops, but can also catch a curbing or edge of the track and cause the bike to flip. This happened to a ZX636 I once owned. I decided to take the chance and install some R&G Aero Frame Sliders.

These sliders are high quality, with a robust two-location mounting block. The pucks are the usual Delron nylon units. To reduce the chances that the slider will catch when sliding, I cut the pucks down by about 1-1/4 inches. So far, I haven’t put them to the test.

Engine Case Covers

Protecting expensive engine cases is of primary importance. I have used Woodcraft products, but like the full coverage of the R&G covers. These British Superbike approved race-spec covers are made of tough plastic and include replaceable sliders. I bought the complete kit which includes both left and right covers. Buy the case covers here.

The racing version includes replaceable sliders

Installation is easy. All you have to do is remove a few of the case bolts, locate the cases and replace with the supplied bolts and spacers. One small issue was that the opening around the oil fill cap wasn’t quite big enough, so I trimmed it with a file.

A little trimming was necessary to clear the oil fill cap.

Exhaust and Protector

The Arrow exhaust is a work of art. And it sounds awesome, especially without the db insert. However, one of the racetracks we frequent has a decibel limit and I am not willing to take the risk of getting dinged.

Besides, the exhaust still sounds great even with the insert…like a hot rod.

The R&G exhaust protector is a nice piece that straps onto the exhaust can using a hose clamp. There is a rubber protector strip to keep the clamp from marring the exhaust.
Buy one for the stock exhaust here.

Front Axle Sliders

R&G also makes axle sliders to help keep the forks and brakes away from the ground. The only thing is that you have to take them off to get the axle out to remove the wheel to change the tire. Not bad, but it adds time. Buy axle sliders HERE.

You can also note in the photo below the zip tie around the fork tube. This slides down to indicate how much fork travel is being used. Also note the torque spec is written in Sharpie for easy reference.

Regarding the brakes, they could use improvement with some higher performance brake pads. They are very good, but I’m used to more sensitive brakes; these are just a bit less powerful and slightly numb.

Levers

One accessory I think is worthwhile are aftermarket levers. Not only do they hold up better in a crash, but they give better feel and they look trick. I’ve had cheap Chinese knockoff that work okay, but these adjustable ASV levers are much nicer. They are pricey though.

Gas Cap Mod

The Aprilias are known for leaking fuel around the gas cap when full, especially when braking hard. I would find a fuel stain along the top of the tank, that is disconcerting to say the least. I can imagine fuel dumping in a crash and setting the bike on fire.

The problem is that the gas cap gasket doesn’t sit tight against the fill opening. The fix is to place an O-ring between the gasket and the fuel cap. Measure the gasket and buy a few different size o-rings to see which one fits and allows the gap to lock. I got mine at a hardware store.

Turn Signal Removal

Removing the turn signals is easy enough. All you need to do is unscrew the lens from the housing, unplug the two wires and pull the wires out from the stalk. Then tuck the wires securely under the side fairing.

RSV4 tail conversion

This is a popular mod among Tuonoistas. The stock Tuono tail looks just fine and as a bonus, has a passenger seat. Because the RSV4 tail has no accommodations for a pillion, the passenger pegs were removed and the exhaust hanger connects to the right peg mount.

You can see in the photo that I put some electrical tape on the pointy parts to prevent the tail from getting scratched as I swing my leg over the bike when mounting.

MRA Windscreen

The bike came with a taller MRA windscreen, which certainly makes riding long miles more comfortable, but it also helps with neck fatigue when ripping down a straightaway at 140mph. And the smoke version looks great.

Tires

My track day organization, Tony’s Track Days, has a regular Pirelli dealer which makes using that brand a no brainer. Even so, I totally love the feel of the Pirellis, whether the Supercorsa or the race slick. Since I had some 180/60/17 SC1 rear slicks hanging around, I mounted them up and they are working great. I’ll be putting on the spec 200 tires when I’ve used up the 180s.

Regarding wear, I am getting an impressive 6-7 days at a combination of intermediate (when instructing) and expert pace. That’s not what I expected when I first got the bike. I get even more from the fronts, of course.

That’s it for now. I’ll update this post as I make more modifications.

Check out the Street Triple modification and Street Triple Track day prep articles.

Stay Informed: Subscribe NOW!
Be a Better Rider: Sign Up for Training
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy from Twisted Throttle

Become a patron to support the website. Thanks

Support Riding in the Zone: Buy from Twisted Throttle

May 9, 2020August 30, 2023

Getting You and Your Motorcycle Ready for Spring

As predicted, Spring has begun to awaken as it has every year. This means that it’s time to dust off the bike and head back out onto the road. But, before you strap on your helmet and thumb the starter, there are a few things you must first take care of. If you want to personalize your helmet, consider buying motorcycle helmet stickers.

Hopefully, you put your motorcycle away so it takes minimal effort to bring it to life after its long winter nap. If not, you may be in for some frustrating downtime.

Performing Maintenance

With the help of a motorcycle owner’s manual, someone with moderately competent mechanical skill can perform most of the tasks we are about to discuss. For tasks that are not covered in your owner’s manual, please consult your dealer’s service center like https://titangaragedoors.ca/service-area/garage-door-repair-in-coquitlam/ to know about your garage doors.

Fuel System

One of the most common pre-season mechanical problems involve the fuel system. This is caused by riders parking their bikes without adding fuel stabilizer to the gasoline. The problem is that old fuel turns into a gooey varnish that can clog the small passageways in the fuel system. This is a significant problem on motorcycles with carburetors, but even fuel-injected bikes can be affected. The use of Ethanol makes the problem even more likely.

If you neglected this task you may be looking at the time and expense of a thorough fuel system cleaning. If the gas in your tank is old it’s best to resist starting your motorcycle. Instead, drain the old fuel from the tank (and drain the carburetors if applicable). This can prevent stale gas from circulating through the system. If your bike runs poorly even after draining the gas, consult a mechanic and store your bike properly next time.

Air Filter

Check your air filter, as rodents seem to be particularly attracted to building nests in air boxes, which is cozy place with nest building filter material handy. Remove any debris and replace the filter if it’s been chewed or looks particularly dirty.

Tires

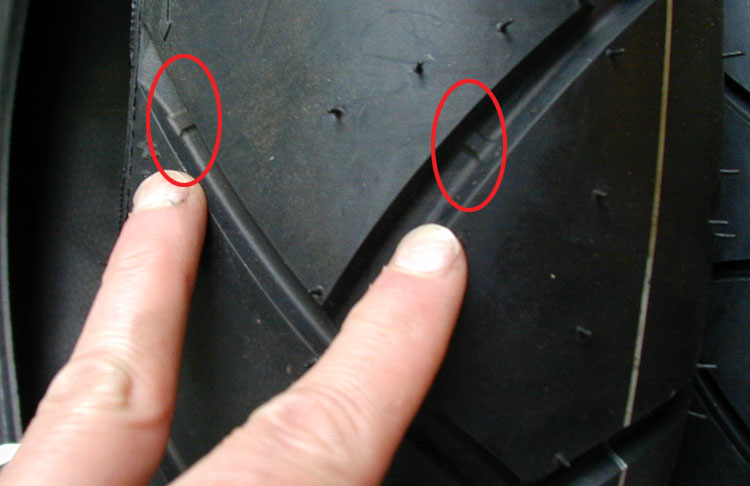

Tread wear indicators can be found in the bottom of the tread.

Tire pressure will drop significantly over the winter and nothing affects handling and wear more than very low tire pressures, so be sure to put a gauge on those stems before the motorcycle rolls out of the garage. If you require a new tire, contact Tire Shop Lynchburg for new tires in Lynchburg, VA. Chicago Garage Door professional screen repair can make your garage safe. If the tread is worn near the tread-wear indicators or if the tires show any signs of rot, now’s a good time to replace the old tires with new rubber.

And check the date code found in an oval stamp with 4 number indicating the week and year the tire was manufactured. 5 years is a good guideline to follow even if the tires look okay.

Drive Train

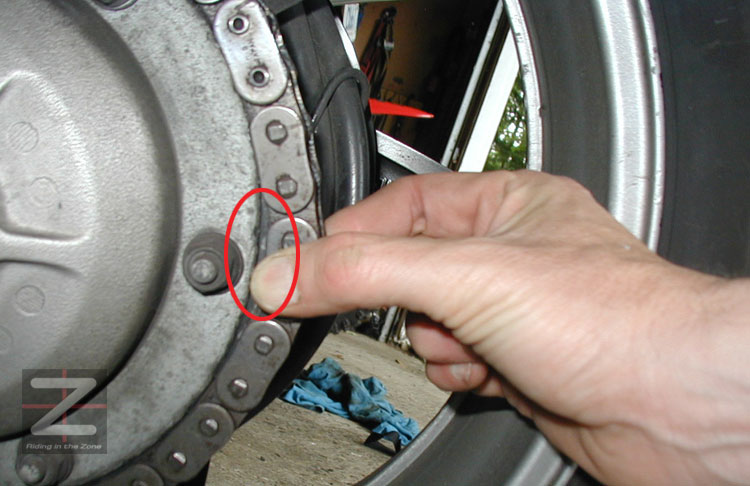

Pull the chain away from the sprocket to check for wear.

While you’re down there, check drive train wear. Sprockets should show no significant signs of hooking and the chain should not pull very far away from the back of the sprocket. Replace the chain and sprockets as a set if necessary. If all looks good, then check the adjustment and give the chain a good lube. Hopefully you lubricated the chain before storage, which means no rust should be present. If this duty was neglected, give the chain a cleaning and lubricate it before the first ride, then perform a more thorough lubrication after the chain is warm.

Engine Fluids

Check your oil level, or better yet, change the oil and filter if you didn’t do it before tucking your bike away last fall. Old engine oil contains acids that are best removed. If your bike is liquid cooled, check coolant levels, including the fluid in your overflow tank (see your owner’s manual). You can go to a shop that does motor and car oil change to do it for you.

Brakes

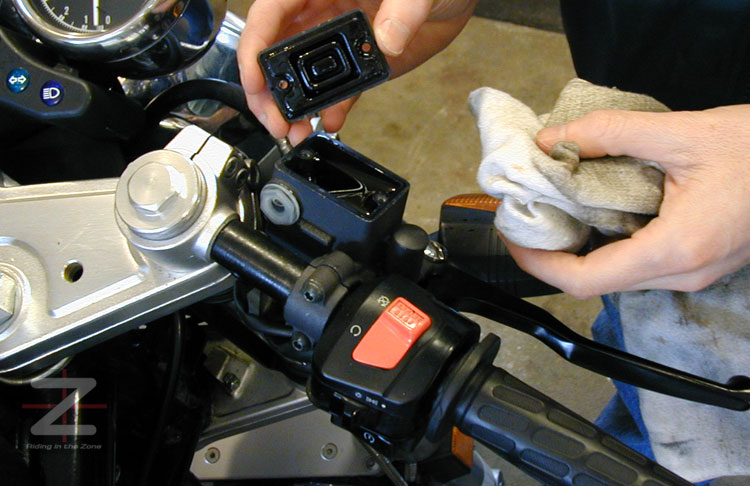

Change brake fluid if it looks darker than apple juice or hasn’t been changed in a couple of years.

Brakes are obviously an important system to maintain. Squeeze the front brake lever and press on the rear brake pedal to feel for a firm application. Look in the sight glass or at the brake master cylinders to see that brake fluid levels are good and plan to replace the fluid if it is the color of apple juice or darker.

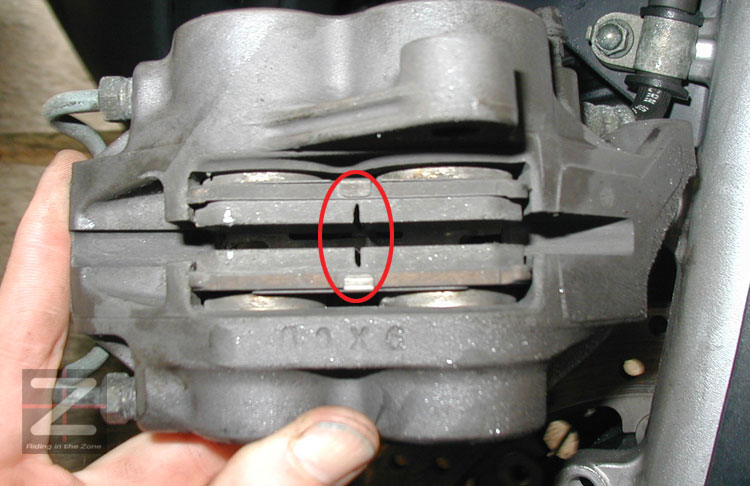

Grab a flashlight and take a close look at your front and rear brake pads to see how much material there is remaining. Most brake pads have a notch cut into the pad as a wear indicator. If in doubt, have the pads replaced. It’s cheap insurance.

Battery

Weak or dead batteries are another common mechanical issue that can stand in the way of reviving a motorcycle after a long period of dormancy. Hopefully, you kept your battery charged. I use a Battery Tender Junior. If not, then you will likely have to charge the battery before it will start the engine. If it will not hold a charge, then a new battery is in your future.

Lights, Cables & Fasteners

Once your battery is good to go, be sure to check that all of your lights are operational. Check that both front and rear brake light switches illuminate the brake light. Check turn signals, tail light and headlights (high and low beam) to make sure they work.

Confirm that the throttle, clutch and brake cables (if applicable) operate smoothly before heading out. Finally, go around the whole bike with a wrench and screwdriver, tightening any loose fasteners.

Awakening the Rider

Now that you’ve taken care of the motorcycle you can think about your first ride. But, before you press the starter button, keep in mind that your likely a bit rusty, too. Spending many months in a car can cause you to become oblivious to motorcycle issues like visibility or road surface hazards.

Some riders begin your season by taking a refresher course with their local motorcycle-training program or from an experienced instructor who offers on-street or track day training (like me).

It’s also smart to take some time on their own to brush up on your emergency skills in a parking lot. Whether you choose to attend a formal rider course or go it alone, we recommend that every rider practice the critical skills by performing some cornering and braking drills.

Spring Roads and Inattentive Drivers

There’s a lot to look for on the street.

Even if you and your bike are fully ready for the new season, remember that the roads may not yet be motorcycle-friendly. Traction-robbing road salt and sand are used extensively in snowy regions to keep roadways ice-free. Keep your eyes peeled for these surface hazards. In many towns and counties, the road sweepers will eventually take care of the majority of the excess sand.

Roadways take a lot of abuse from snowplows scraping the surface and from the effects of repeated freezing and thawing. Expect surface hazards during the early spring until the earth thaws and the road crews can repair the scars.

And remember that drivers aren’t used to seeing motorcycles on the road, so be extra vigilant when riding in traffic.

Your owner’s manual can help you perform these routine tasks so you are prepared for the upcoming season. Taking the time to prepare for the upcoming season can ensure that it is a safe and enjoyable one.

Stay Informed: Subscribe NOW!
Be a Better Rider: Sign Up for Training
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy from Twisted Throttle

March 10, 2017January 23, 2018

Tips for Getting Your Bike out of Winter Hibernation

This article covers the most basic maintenance points for getting a bike ready for another season of riding. If you’re a smart veteran rider who wants to elaborate, please add your comments below so we can all learn from your wisdom.

Those of us who live where the weather blows cold put our motorcycles under cover until the frosty temps subside. And that time of year is fast approaching.

Before taking your first ride you’ll need to make sure you and your motorcycle are up to the task. Hopefully, you put your motorcycle away so it takes minimal effort to bring it to life after its long winter nap. If not, you may be in for some frustrating downtime.

General Maintenance

With the help of a motorcycle owner’s manual someone with moderately competent mechanical skill can perform most of the tasks I’m about to discuss. For tasks that are not covered in your owner’s manual, you’ll have to consult a moto-smart friend or your dealer’s service department.

Fuel System

Riders who park their bikes without adding fuel stabilizer to the gasoline are in for a heap o’trouble. The problem is that old fuel turns into a gooey varnish that can clog the small passageways in the fuel system. This is a significant problem on motorcycles with carburetors, but even fuel-injected bikes can be affected.

Air Filter

Rodents seem to think that air boxes are the perfect place to build their nests. Look for clues like partial acorn shells or shredded fabric or paper. Even if you don’t see these telltale signs, it’s smart to get eyes on the filter. Unless you replaced the filter within the last year or so, you might want to have a new one on hand and just swap it. If the filter is in tact and doesn’t look too discolored or dirty, you an try to remove it and clean it with compressed air.

Too worn? The tire on the left still looks good, but it was getting old, so new rubber was mounted. Read the code on the sidewall to find the manufacture date.

Tires

Tire pressure will drop significantly over the winter and nothing affects handling and wear more than very low tire pressures, so be sure to put a gauge on those stems before the motorcycle rolls out of the garage. If the tread is worn near the tread-wear indicators or if the tires are older than 5 years (no matter the tread depth), I’d replace them. Read the date code on the sidewall. Example: 0415 mean the 4th week of 2015.

Drive Train

While you’re down there, check drive train wear. Sprockets should show no significant signs of hooking and the chain should not pull very far away from the back of the sprocket. Replace the chain and sprockets as a set if necessary. If all looks good, then check the adjustment and give the chain a good cleaning an lube (this should have been done before you stored it…just sayin’). Then be sure to perform a more thorough lubrication after the chain is warm.

Those with shaft drive need to make sure your fluid doesn’t need to be changed or topped off and check for any leaks.

Engine Fluids

Brakes

Brakes are obviously an important system to maintain. Squeeze the front brake lever and press on the rear brake pedal to feel for a firm application. Look in the sight glass or in the brake master cylinders to see that brake fluid levels are good. The fluid should be like watered down apple juice. If the fluid is any darker, then plan on replacing it soon.

Grab a flashlight and take a close look at how much brake pad material there is remaining. Most brake pads have a notch cut into the pad as a wear indicator. If in doubt, replace the pads. It’s cheap insurance.

Battery

Weak or dead batteries are another common mechanical issue that can stand in the way of reviving a motorcycle after a long period of dormancy. Hopefully, you kept your battery charged with a Battery Tender. If not, then you will likely have to charge the battery before it will start the engine. If it will not hold a charge, then a new battery is necessary.

Lights, Cables & Fasteners

Check that all of your lights are operational: front and rear brake light switches, turn signals, tail light and headlights (high and low beam).

Confirm that the throttle and clutch cables (if applicable) operate smoothly before heading out. Finally, go around the whole bike putting a wrench on as many fasteners as you can to ensure they are tight.

Awakening the Rider

Now that you’ve taken care of the motorcycle, it’s time to think about preparing for your first ride. Remember that your brain and muscles have deconditioned over the winter.

Some people begin their season by taking a refresher course with their local motorcycle-training program or with an advanced rider training program. But, at the very least, take some time to brush up on your emergency skills in a parking lot. Whether you choose to attend a formal rider course or go it alone, get in the game by practicing some cornering and braking drills like the ones in the RITZ DVD.

Spring Roads

Even if you and your bike are fully ready for the new season, remember that the roads may not yet be motorcycle-friendly. Road salt is used extensively in snowy regions to keep roadways ice-free. A dusting of salt can decrease traction, so reduce speed where heavy concentrations of salt are present.

Sand is also widely used to combat slippery conditions and we all know how hazardous sand can be for a two-wheeler. Keep your eyes peeled for sand and avoid it whenever possible.

Inattentive Drivers

Perhaps most important is to remember that drivers aren’t used to seeing motorcycles on the road. You’ve got to be extra vigilant when riding in traffic by using strategies for being seen.

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

- Click the PayPal “Pay Now” button.
- Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!

Check out these posts:

Stay Informed: Subscribe NOW!

Be a Better Rider: Sign Up for Personal Training with Ken

Support Riding in the Zone: Buy a book

Support Riding in the Zone: Buy products from Twisted Throttle & Amazon

October 27, 2016June 1, 2024

How to Not Suck at Motorcycle Maintenance

Become a patron to support the website. Thanks

chain-copy — My daughter cleaning and lubing a chain.

Motorcycling is much more than simply owning a two-wheeler. It also means learning to ride well enough to be safe and having the ability to maintain your motorcycle so that the machine you straddle is in top-notch condition.

This is not a trivial requirement. Stories abound of hapless riders falling victim to incidents caused by ill-maintained motorcycles. Failure to lubricate, air-up, tighten or replace certain parts can lead to painful and expensive mishaps that could have been avoided with a bit of preventive maintenance.

New riders can easily become discouraged once they realize that it is time and cost-prohibitive to bring their motorcycle to their local repair shop or dealer to perform frequent chores. It just makes sense to learn how to lube and adjust your chain, change your oil and perform small adjustments that need attention from time to time. It also makes sense to have the ability to bolt on accessories.

The good news is that it’s not difficult to learn how to be self-sufficient. And once you start getting your hands dirty you’ll find a deeper connection with your motorcycle (and with riding).

Once you adopt these basic principals, the next step is to find your owner’s manual and buy a bike-specific repair manual so you can know what is involved with a particular project. Some jobs are better left to the pros, but a surprising number of tasks are very doable by an adventurous owner.

Below is a basic list of tips I put together that will help get you started.

Note: This article contains links from Bike Bandit. I usually turn down these sponsored post offers, but I said yes because I have been using them for years as my go-to source for OEM (original equipment) parts and other goodies. Although this post is sponsored, all opinions are my own. Really.

1. Lefty Loosey

When my daughter was old enough to hold a wrench, I made sure to include her in some basic maintenance chores. She resisted at the time, but she now thanks me. She is not afraid to tackle maintenance chores partly because I exposed her to what it feels like to simply turn wrenches and screwdrivers on various fasteners and components. The first thing she needed to learn is the law of “lefty loosey, righty tighty”. If a nut or bolt won’t seem to budge, first confirm that you’re turning it the right way. Believe me, this happens all the time with newbies.

2. Use the Right Tools

There is a difference between a #2 and #3 Phillips screw driver. Asking a #2 to loosen a tight #3 screw may work out, but don’t be surprised if you then have to deal with a bunged screw head. Having a set of tools and garage supplies like extractors, vice-grips and taps might save the day. Maybe. Get a comprehensive set of metric (or SAE for you American bike owners) sockets and wrenches so you avoid using adjustable wrenches and pliers, which often make your job downright miserable. If your garage door has mechanical damages, it is advised to seek Provision Garage Door Repair Services. This will help ensure that your garage door can protect and secure your motorcycle.

3. Stubborn Nuts

Speaking of tough nuts…Many people struggle because they don’t know how much force is needed to loosen stubborn nuts, shoulder screws or bolts. The right amount of oomph needed to get a fastener undone becomes a “sense”. I can usually feel when a bolt is about to strip (damage threads) or break (sh*t). This comes from experience. But, don’t be deterred. As long as you have the right sized tool (no adjustable wrenches, please) and follow the law of “lefty loosey, righty tighty” then go for it. Just be sure to maintain pressure where the tool meets the fastener so it doesn’t slip on the screw, nut or bolt head.

If it still won’t budge, give it a squirt of Liquid Wrench and let it sit a bit, or apply heat for really stubborn fasteners. If it still won’t give, then clamp on a pair of vice-grips and give it a go. If you are still having trouble, you’re going to need help from someone who can extract the boogered fastener. Or keep at it yourself. Expect to use swear words not heard since your college days. @#%&@* It will eventually come out. Have faith.

4. Understand How Things Work

You will be a more daring and successful mechanic if you learn how a motorcycle’s brake, drive, electrical, and control systems work. It will make more sense why the manual says to remove the whatchamajigger if you know its relationship within the system. You will also be better able to diagnose problems if you know that the thingamajig drives the whatsahoozit.

There are lots of online articles to help with this, and to walk you through specific jobs. You can also take a look at the series of videos from the MC Garage that cover many of the basic maintenance tasks faced by us motorcycle riders. If you plan on doing more complex tasks like valve adjustments, you’d be smart to learn how the engine works, but it’s not necessary for most maintenance chores.

5. Have a Reliable Source for Motorcycle Parts

Let’s say you learned that you need to replace your chain and sprockets, air filter or clutch cable. You can go to your local dealer to buy parts, or you can choose to shop online without leaving your living room. I am a big supporter of my local dealers, but I sometimes feel like they are little more than middlemen between me and the parts distributor. However, if you’re new to this whole motorcycle fixing thing, a knowledgable dealer can offer advice and guidance not easily accessed from online retailers.

Also, delivery can be shorter if I ordered parts online myself and had them delivered directly to my door.

Bike Bandit has delivered prompt service time and again. Even if I end up buying from my dealer, I regularly use their online parts microfiche to learn about the project and make sure all the right parts are ordered. Their search function gets me to the correct page quickly. They also have a “My Garage” list to quickly find parts that fit the bikes I own.

Accessories

While I am ordering maintenance parts I usually end up shopping for other goodies like motorcycle accessories or motorcycle gear. Much of my accessory shopping is done at Twisted Throttle, but I always seem to have some “Bandit Bucks” to spend, so I end up adding something to my order. Besides, Bike Bandit has gear and accessories that Twisted doesn’t carry. I find Bike Bandit easy to work with and their selection is very good. Check them out at www.bikebandit.com.

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

- Click the PayPal “Pay Now” button.
- Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!

Check out these posts:

Stay Informed: Subscribe NOW!

Be a Better Rider: Sign Up for Personal Training with Ken

Support Riding in the Zone: Buy a book

Support Riding in the Zone: Buy products from Twisted Throttle

Become a patron to support the website. Thanks

October 5, 2016April 26, 2020

Adventure Accessories for the Triumph Tiger 800

Become a patron to support the website. Thanks

The arrival of the newest addition to the RITZ garage is a Phantom Black 2016 Tiger 800 XRx. The Tiger has proven to be a true all-arounder. I have toured on it, done a track day, conquered Deal’s Gap and navigated some pretty gnarly roads and single track on the Tiger.

See my LONG-TERM review of the Tiger 800 XRx

I bolted on some accessories (“farkles” to you ADV guys) to help increase the Tiger’s versatility. My friends at Twisted Throttle took care of getting me all the best accessories I needed. They have some of the best Adventure bike accessories. Here is what I installed.

Bike Protection

SW-MOTECH Crash Bars

SW Motech is a German company specializing in top-shelf bike protection. Their crash bars are seriously beefy compared with others I’ve seen, including the Triumph branded bars. The trade off is weight. The SW bars add some pounds to the bike, with much of it held high where the upper loop is located at tank level.

The advantage of the high loop is the protection offered to the fuel tank. But, realistically, a low bar that protects just the engine is a fine option, partly because if the tank makes contact with the ground, it is the plastic side panels that get nailed, and those are only about $60.00 to replace. An good engine guard alternative are the R&G Engine Guards.

Another problem I found with the high SW bars is vibration. It seems as though the setup acts a bit like a tuning fork. Although I noticed the vibes on my first ride with them installed, I no longer notice it at all so this should not be a deal breaker. If you want maximum protection, the SW-M bars are the way to go.

SW-Motech Skid Plate (Sump Guard)

The Tiger comes with a decent plastic skid plate, but it is not beefy enough for the type of abuse the bottom of the engine and frame will be exposed to so I ordered the SW-Motech skid plate. It mounts easily and covers much more of the vulnerable underparts not protected by the OEM plate, including the oil filter, lower exhaust canister and frame rails. It’s quite satisfying to hear the sound of rocks pinging off it’s surface. Money well spent.

R&G Radiator Guard

Putting a hole in a radiator from an errant stone will end your day real fast and is an expensive repair so I installed the R&G rad guard. R&G makes a heavier duty stainless steel guard, but I went with the lightweight aluminum unit. It installs easily and looks great.

R&G Rear Hugger

A Hugger is a rear fender that mounts close to the rear tire to help keep your rear shock clean. The R&G hugger bolted on perfectly and gives a custom look to the Tiger’s rear end.

Pyramid Fenda Extenda

The Fenda Extenda mounts to the bottom of the front fender to help keep crap from flying onto the front of your engine and radiator. It requires some drilling, but is easy enough to install.

Luggage

SW-Motech Hard Bag Sidecarriers

I already owned a set of DrySpec D20 drybag saddlebags and wasn’t planning to buy hard cases until I realized that the soft saddlebags needed to be supported by a side carrier to avoid drooping under the rear fender and seat. I went ahead and bought the SW-Motech side carriers for use with the D20s but then decided to go for some side cases after all (see below). These carriers are awesome. They quickly release from the bike with just a twist of 4 Zeus fasteners. And the quality is top-notch. They carry all brands of side cases with the proper adapter kit.

Givi E-22 Side Cases

There are a lot of side cases to choose from, including the Trax Boxes and cases from Givi and other manufacturers. But, I chose the most lightweight and inexpensive hard case option; the Givi E-22. The 22 is an updated version of the basic E-20 that has been around for years. The new shape looks great and it is just big enough for my needs. Their small size means that the width of the bike when they are installed is fairly narrow.

The cases open at the top so my contents don’t go spilling onto the pavement when I open them. At the low price of less than $250.00 for the SET, you don’t get premium construction, but they have held together just fine and I expect them to perform well for many seasons. FYI, I mount mine backwards from what is intended because I like the way the rearward slop looks on the Tiger.

Bags-Connection City Tank Bag

The BC tank bags are pricey, but are also well made and highly functional. The quick-connect tank ring is really easy to use and is totally secure. I ride the roughest roads with the small City bag and it has never flown the coop. For Tiger 800 riders, you want to mount the top ring as far back as possible on the bag so it doesn’t interfere with your man (or woman) junk when standing, especially on uphill climbs.

You can opt for the electrified tank ring version that gets power inside the bag just by mounting it to the special tank ring. I chose the non-e setup and feed a Euro plug-to-SAE cord a SAE-to-Cigarette socket through the front cord port to get power from the Triumph power socket to the tank bag. I charge my phone, Interphone Bluetooth Comms and whatever else needs juicing up during a ride.

tiger-steelrack — The SW-MOTECH Steel rack mounts over the stock luggage plate.

SW-Motech Topcase Steel Rack

I already had a Coocase topcase from my last bike, but I needed a way to mount it to the Tiger. I could have drilled the OEM luggage plate and rigged up the Coocase to it, but I decided to do it right by buying a SW-M Steel rack. The rack is super-strong and mounts over the plastic Triumph plate for a rugged mounting solution. You can opt for the slightly lighter Alu-Rack, but I like the look of the Steel rack and the lower price.

BDry Spec Drybag saddle bags with SW-MOTECH side carriers and City tank Bag. — Dry Spec drybag saddle bags with SW-MOTECH side carriers and City tank Bag. The Coocase top box is mounted to a SW-MOTECH Steel Rack.

DrySpec Saddlebags & DrySpec Duffle

A lot of ADV riders opt for Hard Cases, like the SW-MOTECH Trax Boxes or the GIVI Trekker Cases. I went with more street-oriented Givi E-22 Side Cases for road and touring. But for real off-road trips, I opt for soft side luggage for two reasons. One, the DrySpec Saddlebags will not get damaged in a fall, and two there is no risk of getting a leg crushed underneath the boxes in a fall or having my calf come in contact with the front of a box when I have to dab my foot while in motion.

The DrySpec Saddlebags & DrySpec Duffle are both totally immersible and sturdy enough to over-pack. They are small, but that just forces me to pack light. The integrated mounting straps are really secure and easy to install.

Tool Tube

The space between the side carrier and the right side of the Tiger is occupied by the exhaust, but there is lots of space on the left side for something. That something I chose was a Tool Tube. I put extra tools, a small can of chain lube and a few other items in their for safe keeping.

Comfort

MRA X-creen Sport Clamp-on Air Spoiler

I get a ton of questions about the spoiler blade I have mounted on the Tiger’s stock windscreen. A lot of people have replaced the stocker screen with MRA or Givi screens, but I like the look of the stock screen, and with the addition of the adjustable MRA X-creen spolier blade, I am perfectly happy with the way it manages wind. I wrote a complete review of the MRA X-Creen earlier when I first mounted one on my Sprint RS. A great option.

ROX Bar Risers

Standing is a big part of off-road riding. The stock bar mounts were okay, but the reach when standing was a bit far and I was also hoping to find a better bar position that alleviated the cramp I get in my upper back. The ROX risers are nicely made and offer a wide range of adjustability with two points of rotational movement. Now, I can stand naturally when riding off road, but the back cramp is still there. I just can’t seem to find a position that helps this problem. I will continue to work with the ROX risers to find that solution.

Electronics

RAM Mounts and X-Grip Phone Holder

RAM Mounts and arms reliably hold my GoPro, iPhone and GPS. There are so many options that it forces you to get creative about where to mount the RAM ball and then which RAM arms to use for your particular needs.

The X-Grip has proven to be a secure and easy mount for my iPhone 5 and 6, even when riding single-track trails on my KLX. Just be sure to use the RAM Tether on rough terrain.

SW-Motech GPS Mount

This Mount positions your GPS (or other device) right smack dab in the middle of the windscreen, just above the instruments using custom bracket and a RAM ball and arm. It’s a perfect solution to prevent having a GPS cluttering your handlebars. It is high quality and mounts easily.

Tank Bag Power

Click the title link to see various electrified tank bag options. I mentioned the tank bag system I have that uses a Euro plug-to-SAE cord a SAE-to-Cigarette socket to power the tank bag. Either option is a good one. Having power in your tank bag is a necessity in today’s e-world.

Tires

tiger-mitas-oem — Mitas 50/50 tire on top. Metzeler 90/10 tire on bottom.

Mitas E-07

I wrote a complete review of the Mitas E-07 50/50 tires. In a nutshell, these tires are great and will allow you to go places you never thought you would. For the Tiger Roadie, order the 110 front tire to avoid the ridiculous oversteer. Order the standard (not Dakar) version for the 800.

Mitas Terra Force

I have not mounted these 90/10 dual sport tires yet, so keep an eye out next year for a full review.

Become a patron to support the website. Thanks

Stay Informed: Subscribe NOW!
Be a Better Rider: Sign Up for Training
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy from Twisted Throttle

February 4, 2015November 14, 2020

The Best KLX250s Modifications

Become a patron to support the website. Thanks

The Kawasaki KLX250s is a versatile combination of playbike and full-on trail burner. Right out of the box, the KLX is a willing companion, both on the dirt and on ice! It is an un-intimidating ride with a well-balanced chassis and handling. But, like many bikes, a few accessories and upgrades go a long way to improve an already good machine.

Most of the parts I installed are available from Twisted Throttle. If you decide to buy any of the items I mention in this article, please buy them from Twisted by clicking on the links on this page. That way, I get a small affiliate payment that helps me continue to write and share helpful articles like this. Thanks.

Bike Protection

Falling down is often a part of off-road riding, so it makes sense to protect the bike from damage. It’s bad enough to bend a lever or handlebar, but it’s worse if the damage strands you out in the Boonies.

Radiator Guards

Here is a part that is vulnerable to damage and expen$ive to repalce. Kawasaki thinks that the plastic fins are good enough to thwart an attack by a roosted rock or an errant stick or keep a radiator from being smashed in a fall, but they aren’t…trust me. I toasted a radiator on a KDX200 many years ago during a routine tipover and learned my lesson.

The radiator guards I installed are made by SW-MOTECH, a German company known for high-quality products. These aluminum beauties replace those flimsy plasti-fins and installation takes only minutes.

Skidplate

SW-MOTECH also made the skidplate that I installed to replace the OEM plate. The SW plate is made from a 4mm-thick aluminum base plate and 3mm-thick side plates. I’ve whacked some seriously solid rocks with this plate with no consequences whatsoever (see photo).

Barkbusters Handguards

Handguards should be at the top of the list for things to install. Not only do they protect your vulnerable metacarpals, but they also keep your levers from bending or breaking when you fall or rap a tree.

The Barkbusters are the original handguards and come with various shaped plastics. The VPS plastics with upper wings provide good wind and brush protection without being too large.

Handlebar

Yes, the KLX comes with a handlebar. But, it’s a P-O-S. It will bend the first time you tipover…guaranteed. The ProTaper bar I installed has taken two significant hits and they are still like new. There are many bends to choose from, but the Henry/Reed bend is just right for me.

Dual Sport Grips

Dual sport grips provide a balance between comfort and grip for all-day control. These grips lack the ridges that are found on most off-road grips (including the stockers). Even though they aren’t as secure, I like the comfort these provide (See photo and link).

Folding Mirror

The stock mirrors are easily damaged in a tipover, so you may as well put them away now and buy an inexpensive folding mirror that can be tucked away when you don’t need it and extended when you have to do some pavement riding to get to the next trailhead.

Tires

My tires of choice for both off and on-road are Pirelli MT-21s (front) and the Dunlop 606 (rear). They aren’t the best off-road tires but are full knobbies. They aren’t really made for much pavement riding, but offer a great (90% -off road/10%- on road) balance.

The Ice Tires I use are Fredette Canadians. These are the best combination of grip and slip so you actually learn about traction management…as opposed to the Marcel tires which grip so hard that you can throw the bike in without a care. (aka, Cheater tires)

Big Bore Kit

OK. As great as the stock KLX is, it became apparent that it could use more power when it struggled to ascend a particularly steep and rocky trail at Hatfield McCoy. The power challenge became even more of a hindrance when I started riding on ice where the vast expanse of frozen water begged for maximum drive. While I had a boatload of fun on the rock hard ponds and lakes with the stock motor churning out every bit of its 17hp, I decided to install a 351cc big bore kit from Blue Bill.

That's what the difference between 250 and 351cc looks like. — That’s what the difference between 250 and 351cc looks like.

The reasonably priced $535.00 kit includes a new re-bored cylinder, piston, rings, wrist pin, and gaskets. Of course, I could have sold the KLX and bought a bike with more displacement, but that would have certainly cost a lot more money. Besides, I like the KLX’s character, so I went for it.

Horsepower and torque increase is modest at somewhere in the 5hp and 6 ft lb range, but that is a 30% and 40% increase from stock (I suck at math, but that’s close enough). The result was noticeable once I went through a short break-in period and was able to open it up. I can now whack the throttle open and the bike responds briskly.

The Build

Installing a big bore kit isn’t very difficult, but it takes some mechanical inclination that consists of more than remembering “lefty loosey, righty tighty”. I’ve done my share of moto-surgery, so I knew what I was getting into. Still, it’s unnerving to remove the head, camshafts, cam chain, cylinder and piston ,and then get it all back together again without any important parts leftover.

I disassembled the bike following the Kawi shop manual and all went well. I removed all the leftover gasket goop from the case with an oiled Scotchbright pad and was ready for my friends Adam and Jay to show up and give me re-assembly help. After 4 hours or so in a cold garage, the motor fired up and sounded good. I was scheduled to ride the next day on the ice in New Hampshire, so I would soon know if we did things right.

Jetting and Exhaust

Some jetting was needed to manage the extra displacement. I added two washers underneath the needle clip to raise it and replaced the 118 main jet with a 125 and changed the slow jet from a 35 to a 38. The air screw is turned out 2.5 turns (you have to drill out the EPA plug the get jet access). That combination worked great right out of the box using the stock exhaust.

That’s right, I’m sticking with the stock exhaust for now. I value a very quiet bike, especially when riding off road. Yes, the heavy stock can and header pipe is certainly holding back the power potential, but I’m okay with that for now. I’m told the hot setup that is also reasonably quiet is the FMF power bomb header pipe in combination with the FMF Q4 muffler.

Verdict

I made sure to warm the bike thoroughly in the 10F temperatures before taking the bike for its maiden voyage on Hoit Pond. It felt good, but the instructions were to keep it at below half throttle for 100 miles before going WFO. Using conservative throttle, I immediately felt the increase in torque, but not much in the hp department. That would come later.

I managed 4 sessions (about 40 miles) at no more than half throttle before I slowly began opening it up to break it in the way racers do: hard. It ran great and pulled strong. I was pleased. The additional power meant I could use different techniques for getting the bike turned; namely whacking the throttle mid corner. This would hook the bike up nicely to finish the corners. The old motor couldn’t manage this feat. Cool beans.

Why a KLX?

My previous off-road bike was a 2000 DRz-400e. The DRz was a great bike; it had lots of rear tire spinning, wheelie-inducing power, but was a beast, especially in tighter trails. I now know the benefits of a more docile bike with a lower seat height and civilized manners. The KLX is a great platform that just needs a bit of love.

The bike protection goodies are a must-do if you don’t want to damage vulnerable parts and possibly become stranded in the middle of the woods. And the Barkbusters are critical to protect your hands and levers. The stock handlebar will likely bend if you look at it wrong and the mirrors will break if you scream too loud. So, get those things taken care of ASAP.

As far as the power upgrade goes, I think it is a worthwhile way to spend some money. The stock motor is reliable, but barely adequate when the going gets tough. It’s a great motor for any around town riding and level off roading. If you are a fast off road rider you won’t be looking at a KLX, so no need to compare this bike with a KTM or CRF-X.

No, this is for the person who rides both on and off road and wants a bike that is easy to ride and instills confidence. This bike is still too tall for a lot of riders, but is perfect for most middle to light weight folks of average height.

Become a patron to support the website. Thanks

Stay Informed: Subscribe NOW!
Be a Better Rider: Sign Up for Training
Support Riding in the Zone: Buy a book
Support Riding in the Zone: Buy from Twisted Throttle

March 24, 2014January 23, 2018

Traction Seminar: Motorcycle Tires

Ken and Tony from www.tonystrackdays.com speak about tires at the Traction Management Seminar at the Thompson Speedway Motorsports Park.

More video of the seminar to come. Thanks Eric R. for filming.

Share your thoughts about tires and ask any questions below.

Subscribe to the mailing list!

Buy the Book!

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

- Click the PayPal “Pay Now” button.
- Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!

How Can I help You? Online Coaching NOW AVAILABLE

Stay Informed: Subscribe NOW!

Be a Better Rider: Sign Up for Personal Training with Ken

Support Riding in the Zone: Buy a book

Support Riding in the Zone: Buy products from Twisted Throttle & Amazon

March 2, 2014January 23, 2018

Is it Spring Yet? Get Ready!

Damn you, Polar Vortex!

Polar Vortex Express photo by Jeannine Condon

Nobody can deny that this winter has been a doozy! Even as March has arrived, it’s well below freezing and the snow cover is still measured in feet where I live. Thankfully, the sun is noticeably higher in the sky and the days are longer, which points to the inevitable spring thaw.

This means that it’s almost time to ride!

But, wait. Before you thumb the starter there are a few things you need to take a look at before your first ride of the season.

The first step is to make sure your bike is ready to roll. Next up is the importance of getting your mental and physical skills in shape for the new season.

Bike Prep

Here’s a quick list of pre-season maintenance tasks. I’m not going to go into detail about how to perform these duties, because that would be a very long post. Most of these things are covered in your owner’s manual. If you do not feel comfortable tackling these projects, find an experienced friend to help you with any of these jobs that you can’t do yourself.

Put a gauge on those stems before you ride!

Do these things:

Charge your battery
Check your air filter
Check your tire pressures and condition
Check your drive system
Change your oil and filter
Check your brake pads and fluid
Check your lights
Put a wrench to all fasteners
Lube cables
Wipe her down, Start her up!

Mental Maintenance

After you’ve taken care of the motorcycle, then the next thing to give some attention to is your mental and physical skills.

With all the anxious anticipation of the first ride of the season, it’s easy to forget that motorcycling is a challenging endeavor that requires you to be on top of your game. Starting your riding season without considering the consequences of rusty skills could end your season prematurely.

If you’re like me, you’ve probably been spending the winter months getting around town behind the wheel of a car. This can cause you to forget that your survival instincts and riding “edge” are dulled. It’s easy to become oblivious to motorcycle issues like visibility or road surface hazards when you’ve been off the bike for a while.

It’s likely that you haven’t been too concerned about being seen by others the way you are when riding your bike, because it’s easier for others to see you when you’re driving a 3-ton vehicle. Now is the time to get that mental radar fired up so you can deal with all the distracted and complacent drivers. Remember that drivers haven’t seen bikes on the road for several months or weeks and won’t be looking for you.

Also, you probably haven’t been too concerned about road surface hazards, because most surface conditions are of little concern when you have four wheels beneath you. Get your road surface sensors sharpened before you roll out of your driveway.

Thawing Your Skills

Formal training courses are a great way to sharpen your skills.

Some riders begin their season by taking a refresher course with their local motorcycle-training program, which usually offer the Motorcycle Safety Foundation (MSF) suite of courses. Others take some time on their own to brush up on their emergency skills in a parking lot, but most simply take it easy until the cobwebs blow away.

Whether you choose to attend a formal rider course or go it alone, I recommend that every rider practice critical skills by performing some cornering and braking drills.

Skills are perishable, which means you have to keep practicing whenever you can. Not just at the beginning of the season! That’s why I include drills in my Riding in the Zone book and DVD.

Subscribe to the mailing list!

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

- Click the PayPal “Pay Now” button.
- Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!

How Can I help You? Online Coaching NOW AVAILABLE

Stay Informed: Subscribe NOW!

Be a Better Rider: Sign Up for Personal Training with Ken

Support Riding in the Zone: Buy a book

Support Riding in the Zone: Buy products from Twisted Throttle & Amazon

October 29, 2013January 23, 2018

Triumph Street Triple R gets accessorized

The Street Triple is serving duty as both a track bike and a street bike. It's great on gas. — The Street Triple is serving duty as both a track bike and a street bike. It’s great on gas.

The Street Triple R has been getting the track day treatment with protection, top shelf suspension, and race tires. You can read about the track makeover HERE.

But, since I’ll be riding the Striple both on the track and the street, I’m also adding some street goodies to help make it a bit more street-able. It’s a great street bike to begin with, but a few select accessories make the Street Triple R a nice road companion.

R&G Tail Tidy keeps the turn signals out of the way and save a ton of weight.

R&G Tail Tidy Fender Eliminator

The R&G Tail Tidy allows my bike to be ready for both track or street. The fender eliminator save a lot of weight and keeps the turn signals tucked in in case of a fall.

Click the link below to view the Twisted Throttle product page for the Tail Tidy.

Seattime

Here she is with all her track protection and street goodies.

The Triple R came with a Sargent seat as well as the stock seat. The Sargent is very firm, like I know Corbins to be. The shape is much flatter than the stock two-toned seat, which unlike the stocker, keeps my gentlemen from getting “tanked” when braking. The Sargent isn’t perfect. The forward edges are a bit sharp and it kinda keeps me on a single position. The Sargent makes most sense on the highway where I am angled forward into the wind, which scoots my butt back into the “pocket”of the seat’s shape.

On the track, I found the Sargent to be too restrictive when hanging off the bike all the way.

This is where the stock seat is superior with a crowned shape that allows for easy side-to-side movements. It’s really easy to change the seats, so I’ll use both for their respective purposes.

The stock seat looks great, but it’s too narrow and slides me too far forward.

The Sargent seat makes street riding nicer.

Lord of the Tankring

I’ve used the SW-MOTECH/Bags-Connection Quick-lock tankbags for a while now. The bags are very nice, but the real advantage of these bags is the tankring mounting system. The bag clicks on and off the tank so easily that I will never go back to straps or magnet tankbags.

The heart of the system is the tankring that mounts tot he gas filler ring around the gas cap and the mating ring screwed on the bottom of the tankbag. With this tankring, I can switch my Bags-Connection Sport tankbag on both of my bikes; the Sprint RS and the Striple within only a few seconds.

Here is the Triple with the tankbag, flyscreen and stock seat.

The SW-MOTECH/Bags-Connection Quick-Lock Tankbag system is awesome.

Lord of the Flyscreen

Naked bikes are, well, naked. As as such, expose the rider to a wall of wind. This isn’t bad for most street riding situation, but once it gets chilly and you hit the highway, that wind blast becomes a bit much.

I knew the Triumph OEM flyscreen would not give a heck of a lot of protection, and it doesn’t. But, I hope that it will give me a place to tuck when I’m flying down the racetrack at over 100 mph. We shall see when I head to Barber at the end of November.

Update: I added the Sport version of the MRA X-creen from my street bike (Sprint RS) just before leaving for Barberrrrr…it worked great. From twistedthrottle.com

The Triumph OEM flyscreen is sexy, but provides almost zero wind protection.

MRA X-creen clamped to the flyscreen. It worked great.

Phone Mount

I’m installed a RAM ball to the Triple’s handlebar mount so I can have my phone within sight distance for those times I use my iPhone’s GPS function. The phone itself will be attached using the spring-loaded RAM X-Grip device. It’s proven to be a secure mount during off road adventures with the guys and gals at Twisted Throttle. I mounted the RAM ball on the forward right handlebar mount so that the phone would not block the more pertinent information on the LCD screen (speedo, time, etc.) As it sits, it is tucked close to the master cylinder and only blocks the tach past 14,000 rpm. Not a problem on the street.

The RAM GoPro ball makes mounting the camera a breeze. No need for sticking mounts on the bodywork. Just be sure to tether the camera housing to the handlebars in case things get loose.

I can listen to the GPS navigation through my Interphone Bluetooth Intercom. I also listen to music when I feel like it. This is the system I use when I do one-on-one instruction on the track and on the street when I travel with my family.

GoPro mounted using the special GoPro RAM ball.

The Interphone Bluetooth Intercom allows me to listen to my phone’s GPS or music, or even answer the phone.

Update: The Striple has not seen much street time since track day season has begun. It’s slowly but surely turning into a track day-only bike. Take a look at how it’s become outfitted for the track.

Product Gallery. Buy from here and support RITZ

Stay Informed: Subscribe NOW!

Be a Better Rider: Sign Up for Personal Training with Ken

Support Riding in the Zone: Buy a book

Support Riding in the Zone: Buy products from Twisted Throttle & Amazon

Please Donate to Keep the Articles Coming

If you liked this article and the many other articles on this site, please toss a buck or five into the hat. It’s greatly appreciated!

- Click the PayPal “Pay Now” button.
- Then indicate quantity in $2.00 increments. – Example: put “2” in “QUANTITY” field to donate $4.00, “3” for a $6.00 donation, etc.

Why $2.00? Due to the PayPal fee structure, a $2.00 donation is significantly more beneficial compared to a $1.00 donation.

Thank You!
